Add Transformer Moisture Reduction to your Services

With DryMax–E Technology from SDMyers

Create a Moisture Reduction Service with DryMax–E

As someone who services transformers, you know that moisture can cause significant reliability issues. When combined with heat and oxygen, the insulation begins to oxidize, which damages the transformer. You can help customers avoid moisture issues with DryMax–E technology and, in the process, create a valuable revenue-generating service.

Create a new service line or equipment rental program

Help customers increase the reliable life of their transformers

See a return on investment in 12-18 months

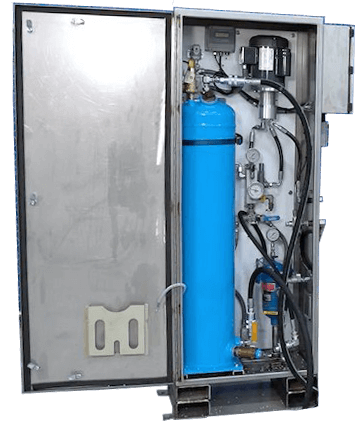

Meet DryMax–E

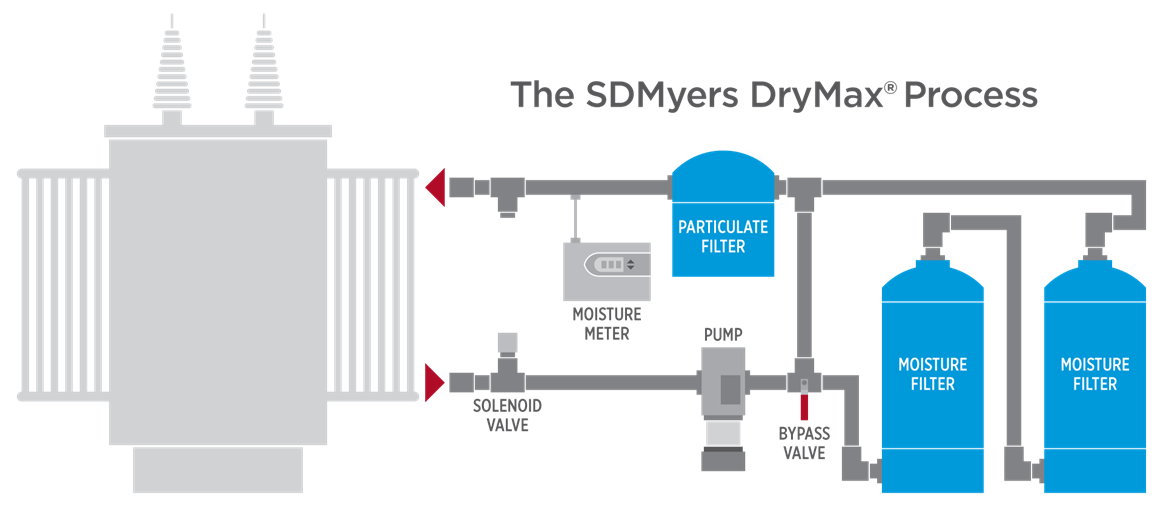

DryMax—E is an online passive dryer for transformers that removes moisture from the oil and the paper while the equipment remains fully energized and in service. Once saturated, the drying media in the columns can be easily changed to continue the drying process

Free-standing, rugged construction with stainless steel enclosure
2 GPM magnetically coupled pump, moisture meter, and a 1-micron filter
Optional moisture tracking for customer feedback and recommendations
Safety features and alarms for high-pressure and leak detection
Removes moisture from the oil and the paper insulation over time
Mobile unit that can be installed/re-installed throughout a fleet of transformers
Instructional video, components, and tools provided for media exchange

Safe & Reliable Discover DryMax

Seven Questions About Transformer Moisture Reduction

Seven Questions About Transformer Moisture Reduction [Spanish]

DryMax–E Specifications & Resources

Changing the DryMax–E Media

DryMax–E’s drying media is easily changed to continue the drying process. Order drying media bags (50 lb. each) from SDMyers without worrying about costly shipments of entire columns.

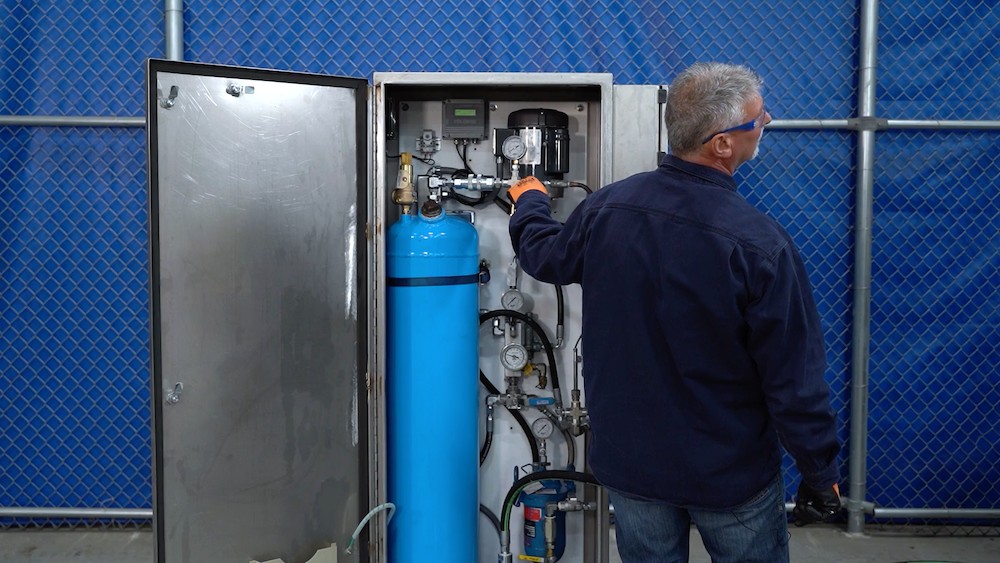

Step 1: Remove the oil from the column with air compression into a 55-gallon drum.

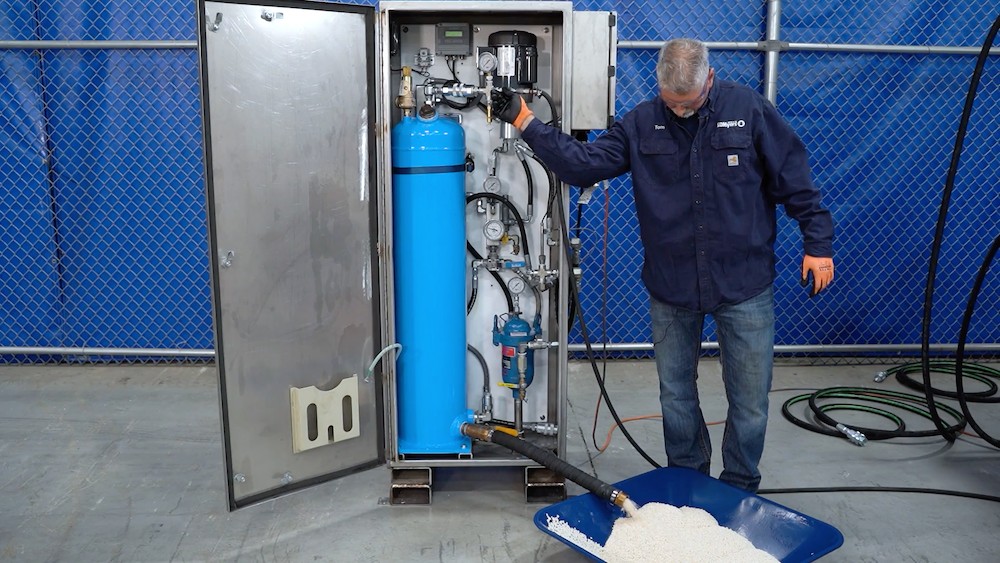

Step 2: Remove the saturated DryMax media from the column into the media removal pan.

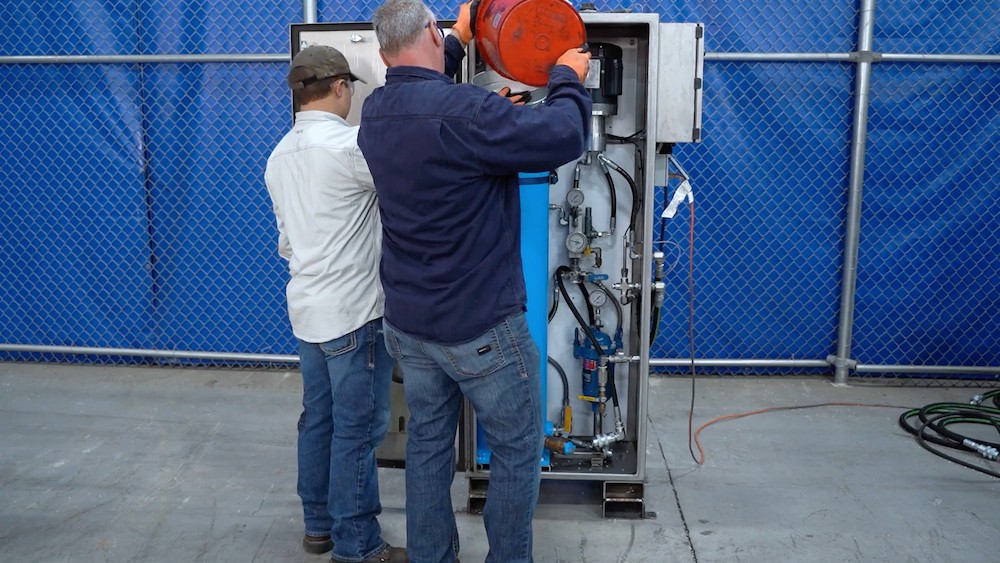

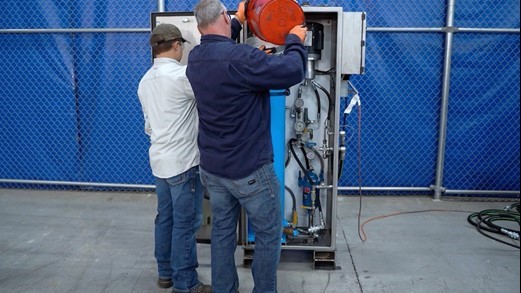

Step 3: Fill the column with new DryMax media through the top fill port.

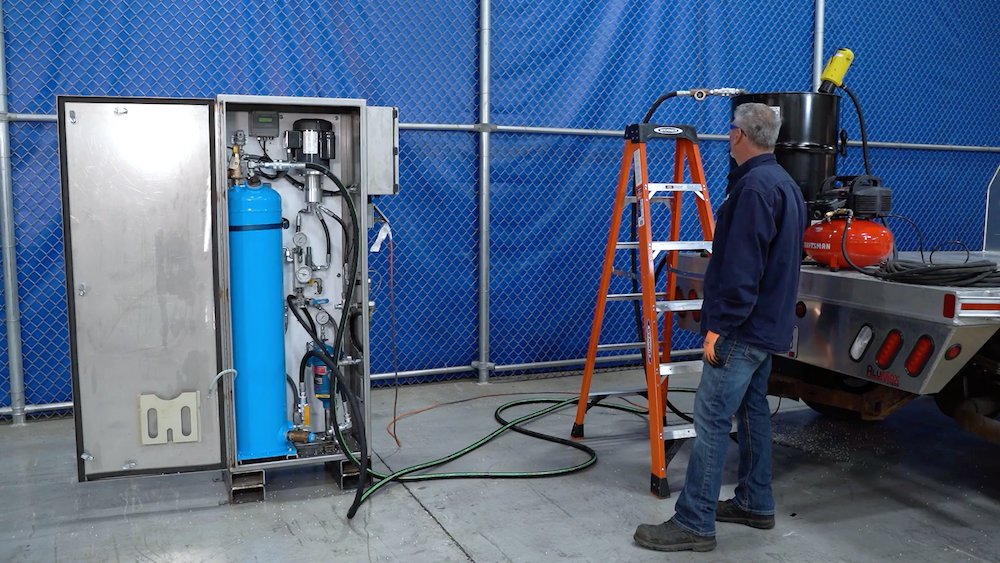

Step 4: Fill the column with oil using the drum pump and restore service on the transformer.

Start generating revenue with DryMax–E

If your customers have transformer moisture issues, DryMax–E is the perfect solution to keep their operations running and increase their transformer’s life expectancy and reliability. You can start generating revenue with DryMax–E in just three steps.

First, contact your SDMyers sales rep to find out how DryMax–E can pay for itself with a return on investment in just 12-18 months.

Second, work with SDMyers to determine your customer’s needs.

Third, we will provide you with a training video and a marketing asset kit that includes everything you need to go to market with DryMax–E.

Contact SDMyers about DryMax–E

Complete the form to contact SDMyers about getting started with DryMax–E. A transformer specialist will contact you shortly about adding DryMax–E to your services.
